The Defender deployment tool streamlines onboarding for supported Windows versions and installs the appropriate Microsoft Defender endpoint security solution. For Windows 7 SP1 Pro/Enterprise and Windows Server 2008 R2 SP1, Microsoft documents a Defender endpoint security solution with advanced protection capabilities and improved functionality compared with older solutions.
This is a risk-reduction bridge for legacy systems, not a substitute for operating-system modernization. Microsoft states that operating systems past the end of support no longer receive OS quality, feature, or security updates, even though Defender for Endpoint-protected devices can continue to receive Defender product updates.
In this article, you will learn:
Affected SystemsÂ
Prerequisites and LicensingÂ
Symptoms / Observable BehaviorÂ
Root Cause / What ChangedÂ
Resolution / Recommended ActionÂ
Step-by-Step Deployment or Validation StepsÂ
Official Platform ImagesÂ
Workarounds / LimitationsÂ
Administrator Notes for EducationÂ
Validation and Corrections Applied to Uploaded DraftÂ
References
Affected Systems
- Windows 7 SP1 Pro and Windows 7 SP1 Enterprise client devices.
- Windows Server 2008 R2 SP1 devices.
- The Defender deployment tool also supports Windows Server 2012 R2, 2016, 2019, 2022, 2025, Windows 10 version 1809 and newer, and all versions of Windows 11.
- Windows 8.1 and Windows 8.1 Pro remain exceptions in Microsoft’s down-level guidance. Use Microsoft Monitoring Agent/SCEP rather than the Defender deployment tool.
Prerequisites and Licensing
- For client devices, the Deploy Microsoft Defender Learn article referenced below applies to Microsoft Defender for Endpoint Plan 1 and Plan 2.
- For servers, Defender for Endpoint Plan 1 and Plan 2 do not include server licenses. Microsoft states that onboarding servers requires another license, such as Microsoft Defender for Servers Plan 1 or Plan 2 through Defender for Cloud.
- Administrative privileges are required for most Defender deployment tool operations.
- Target Windows 7 SP1 or Windows Server 2008 R2 SP1 devices must be x64 and have at least KB4474419 for SHA-2 code signing support and KB4490628 servicing stack update. Server 2008 R2 SP1 also requires .NET Framework 3.5 or higher.
- Devices need network access to definitionupdates.microsoft.com and require Microsoft Defender for Endpoint service endpoints, including *.endpoint.security.microsoft.com/* for related functionality.
- IPv4 must be enabled for Defender for Endpoint cloud-service communication, or an IPv6-only environment must provide appropriate IPv6/IPv4 transition mechanisms.
Symptoms / Observable Behavior
- After deployment, services such as Sense and WinDefend should run on the device, and the device should appear in the Defender portal inventory.
- On Windows 7 SP1 and Windows Server 2008 R2 SP1 with Desktop Experience, Action Center may display Windows did not find antivirus software on this computer. Microsoft states this notification is not indicative of a problem.
- There is no local Defender Antivirus UI on Windows 7 SP1 or Windows Server 2008 R2 SP1. Manage settings through PowerShell 5.1+, Group Policy with updated templates, or central management.
- Logs are written to C:\ProgramData\Microsoft\DefenderDeploymentTool\DefenderDeploymentTool-<COMPUTERNAME>.log, and onboarding/offboarding events are written to Windows Application event logs.
Root Cause / What Changed
Microsoft introduced the Defender deployment tool to reduce manual onboarding complexity. The tool checks prerequisites, downloads or stages needed components, supports interactive and non-interactive deployment, creates onboarding visibility, and can support bulk deployment through Group Policy or other orchestration platforms. For legacy Windows systems, it provides a more modern endpoint security path than the older MMA/SCEP-only approach.
Resolution / Recommended Action
- Use the Defender deployment tool for Windows 7 SP1 Pro/Enterprise and Windows Server 2008 R2 SP1 only when these systems cannot yet be upgraded or retired.
- Treat deployment as part of a legacy-system risk register. Include owner, business justification, isolation controls, patch/ESU status if applicable, and target retirement or replacement date.
- Do not describe the legacy solution as near-parity with modern Windows. Microsoft documents important unsupported capabilities, including Network Protection, Attack Surface Reduction rules, Controlled Folder Access, IP/URL indicators, and several Defender Vulnerability Management experiences.
- Deploy in pilot first, especially for lab instruments, research systems, testing kiosks, and vendor-locked systems.
Step-by-Step Deployment or Validation Steps
- Inventory legacy Windows devices and confirm that each has an assigned business owner and a modernization plan.
- Verify licensing: client coverage for Windows 7 SP1 devices and server coverage for Windows Server 2008 R2 SP1 devices.
- Confirm prerequisites on target devices: x64 OS, KB4474419, KB4490628, .NET Framework 3.5+ for Server 2008 R2 SP1, local administrator rights, internet/proxy reachability, and IPv4 support or appropriate transition services.
- In the Microsoft Defender portal, go to System > Settings > Endpoints > Onboarding.
- Choose Windows, then under Deploy by downloading and applying packages or files, select Defender deployment tool > Onboard.
- Generate a package with a short validity period, copy the deployment key, and download the tool. Store the package and key securely; onboarding packages should be treated as sensitive deployment material.
- Pilot interactively on one to three devices by running the tool as an administrator and enter the deployment key when prompted.
- Validate device health by checking the Defender portal device inventory and by running, sc.exe query sense and sc.exe query windefend.
- For scaled deployment, use a software deployment tool or Group Policy scheduled task running as SYSTEM. Microsoft documents a GPO method using Computer Configuration > Preferences > Control Panel Settings > Scheduled Tasks > Immediate Task.
- After deployment, review the Defender deployment tool log, Application event log sources WDATPOnboarding/WDATPOffboarding, Defender portal device timeline, and advanced hunting, where available.
- Document unsupported security controls and compensating measures such as VLAN isolation, firewall policy, local admin restrictions, application allowlisting outside Defender, and enhanced monitoring.
- Schedule recurring review of every legacy endpoint until it is upgraded, retired, or vendor-supported on a modern
Platform Images

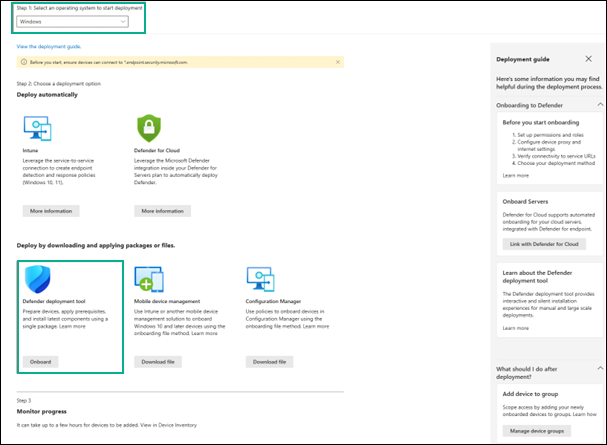

Official Microsoft Learn image: Defender portal onboarding page showing Windows and Defender deployment tool selection.

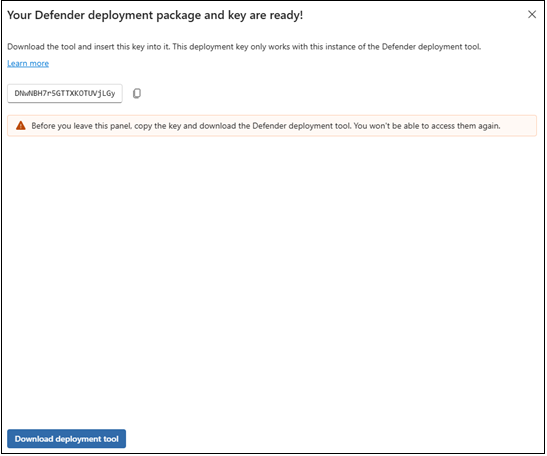

Official Microsoft Learn image: Defender deployment package and key download panel.
Workarounds / Limitations
- Passive mode: Microsoft documents that Defender Antivirus can be put into passive mode on Windows 7 by passing the passive parameter to the Defender deployment tool. Switching back to active mode later requires offboarding, uninstalling, and rerunning the deployment tool without passive mode.
- No local AV UI: Manage local Defender Antivirus settings with PowerShell 5.1+ or Group Policy using updated Windows Defender ADMX/ADML templates.
- Unsupported protections: Do not plan to use Network Protection, Attack Surface Reduction rules, Controlled Folder Access, IP indicators, or URL indicators on Windows 7 SP1 / Server 2008 R2 SP1 through this solution.
- Windows 8.1: Use Microsoft Monitoring Agent/SCEP per Microsoft down-level guidance; do not use the Defender deployment tool path for Windows 8.1 unless Microsoft changes the guidance.
- Server licensing: Validate Server 2008 R2 SP1 coverage separately. Microsoft explicitly states that Defender for Endpoint Plan 1 and Plan 2 do not include server licenses.
Administrator Notes for Education
- Common EDU legacy candidates include instructional lab machines, research instruments, auditorium or athletics systems, vendor-locked building systems, media labs, and grant-funded equipment that cannot be upgraded mid-cycle.
- Keep these devices off general student/faculty VLANs where possible. Use segmented networks, firewall restrictions, no direct internet browsing, and no local administrator use for day-to-day operations.
- Do not let the presence of Defender tooling delay modernization. The operating system remains a risk because OS-level vulnerabilities are not fixed after the end of support unless another Microsoft-supported servicing program applies.
- Document parent/system owner, vendor contact, application dependency, network location, device tags, and target retirement date in the asset record.
Validation and Corrections Applied to Uploaded Draft
- Changed near-parity language to a more precise statement. Microsoft documents improved functionality, but several modern security capabilities are not supported on Windows 7 SP1 and Windows Server 2008 R2 SP1.
- Clarified that server onboarding needs a server entitlement; Defender for Endpoint Plan 1/2 does not include server licenses.
- Clarified that Windows 8.1 uses Microsoft Monitoring Agent/SCEP in the current Microsoft down-level guidance.
- Retained preview caution because Microsoft Learn metadata/search snippets have labeled this deployment path as preview, but the current page content should be rechecked during tenant rollout. Do not present this as a permanent support strategy.
- Validation confidence: 90%
- Human review recommended for: Final preview/GA status in your tenant, Microsoft account-team licensing confirmation, and supportability for vendor-locked systems.
References
- Deploy Microsoft Defender endpoint security to Windows devices using the Defender deployment tool: https://learn.microsoft.com/en-us/defender-endpoint/defender-deployment-tool-windows
- Onboard previous versions of Windows: https://learn.microsoft.com/en-us/defender-endpoint/onboard-downlevel
- Minimum requirements for Microsoft Defender for Endpoint: https://learn.microsoft.com/en-us/defender-endpoint/minimum-requirements
